Brief introduction of 3003 Aluminum foil
3003 aluminum foil is a common product of al-mn series alloys. This product has good anti-rust properties, the strength is about 10% higher than 1100, and the formability, weldability and corrosion resistance are good. It is used to process parts that require good formability and high corrosion resistance.
As a manufacturer of aluminum foil in China, Shengzhou provides customers with a comprehensive quality assurance system, from aluminum ingots purchased from raw materials to layer upon layer inspection of production links, and then to quality inspection before leaving the factory to provide customers with 360-degree worry-free quality inspection packaging.
Market application of 3003 Aluminum foil

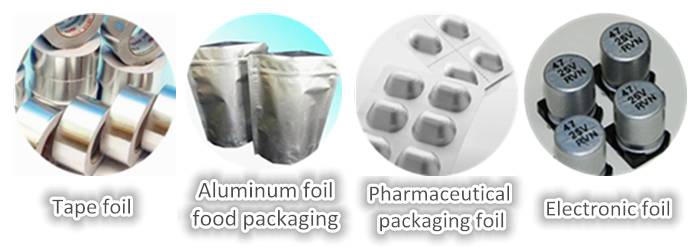

3003 aluminum foil is widely used for electronic foil, honeycomb materials, building sound insulation materials, food packaging, etc.
About Us
Gongyi Shengzhou Metal Products Co.,Ltd.
1.Founded in 2005, experienced manufacturer of aluminum products: aluminum circle, aluminum foil and aluminum strip, etc.
2. Professional technician to meet any of your requirement.
3. Professional inspection department, strict inspection of product quality
4. Free sample and on-time delivery time.
5.Our markets cover many countries: North America, South America, Europe, Middle East and Africa and etc.
Gongyi Shengzhou Metal Products Co.,Ltd. is a professional aluminium circles and aluminum foil manufacturers,mainly supply Aluminum Circles, Aluminium discs, Aluminum Strip, Food Box Material Aluminum Foil, Aluminum Circles for Kitchenware etc. series of aluminum products, sincerely welcome everyone to visit.
Technical parameters of 3003 Aluminum Foil
Alloy grade |
3003 |
Temper |
O,H14,H16,H18,H22,H24 |
Thickness (mm) |
0.016-0.2 |
Width (mm) |
100-1600 |
Typical product |
Electronic foil, pharmaceutical packaging foil, food packaging, etc |
Chemical composition of 3003 aluminum alloy
Alloy No. |
3003 |
|
Chemical composition % |
Si |
0.60 |
Fe |
0.70 |
|
Cu |
0.05-0.20 |
|
Mn |
1.0-1.5 |
|
Mg |
- |
|
Cr |
- |
|
Zn |
0.10 |
|
Ti |
- |
|
Others |
0.20 |
|
Al |
Remain |
|
3003 Aluminum Alloy Products
Products |
Type |
Temper |
Thickness (mm) |
Width (mm) |
Length (mm) |
3003 Household Foil |
Painted,Bare, Mill Finish, Tread plate |
H11,H12,H14,H16,H18,H22,H24,H26,H28 |
0.01-0.2 |
300-1100 |
Coil |
3003 Container Foil |
H22, H24 |
0.01-0.2 |
200-1100 |
||
3003 Packaging Foil |
O, H22, H24 |
0.018-0.2 |
100-1600 |
||
3003 Electronic Foil |
H18 |
0.02-0.055 |
100-1600 |
